BATTERY

Features & Advantage

01

Designed to keep a proper level of electrolyte in the upper part of plates via accommodating an acid volume by 10mm or so higher than competitors’ to sustain an acid volume in case of water consumption caused by an evaporation at a high temperature.

02

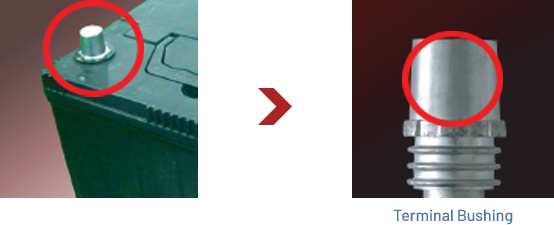

Application of cold-forged bushing & leakage-proof

- The grids produced by high pressure casting system have an excellent advantage in cycle life of traction cell due to its anti-corrosion characteristic.

Minute tissue (Increase of strength)
Prevention of whitening & discoloration via oil applying

Constraint to a leakage around terminal

No interfacial crack

03

An increase of life span via adoption of spun-bonded paper Spun-bonded paper

An increase of lite span via adoption of spun-bonded paper
An increase of life span via maintenance of active materials of positive plates

04

An increment of anti-corrosion & life span via an adoption of grid in high Sn(tin)

- Ranking in life span under overcharging of high temperature

Ranking in an anti-corrosion under the condition of specific gravity 1.280 at 25 degrees celcius of an ambient temperature

1 High Sn
2 Low Sn
3 Cast

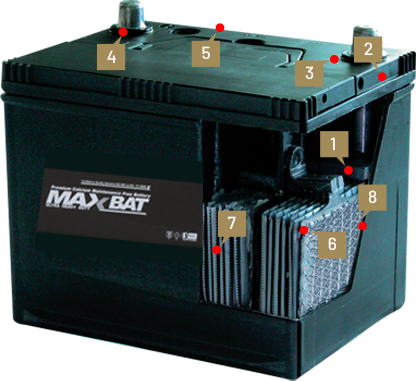

Structure

1 Centered Cast-on Plate Straps

Stronger than the thinner gas-burned conventional connectors.
Reduce the lever action movement resulting from road shock

2 Exclusive Patented Liquid Gas Separator

Prevent electrolyte losses by collection and returning liquid to the reservoir.
Vents allow the battery to "breathe" during temperature changes and charging.

3 Flame Arrester

Safety system
Prevent the explosion from spark of outside
Minimize the acid—leakage
Prevent the inﬂow of dust

4 Heat-Sealed Covers

Prevent contamination and also add to the strengh and rigidity.
Include permanent flame arresters to prevent accidental explosion from external sparks or flame.
Have hydrometer built in for faster checking.

5 Hydrometer

At full charge, the electrolyte speciﬁc gravity is 1.28 while at 50% of charge considered the minimum serviceable condition, the speciﬁc gravity is typically 1.22, In a typical situation when the speciﬁc gravity drops to 1.1 0, the battery is fully discharged.

6 Low-Resistance Envelope Separators

Encapsulate negative plates
Improve vibration durability
Prevent “treeing“ and internal shorting between pos.and neg. plates

7 Polypropylene Case

Reinforced design is precisely tailored to support the battery elements.
Material is exceptionally strong, durable and withstands road shock and vibration.

8 Wrought Lead-Calcium Grids
