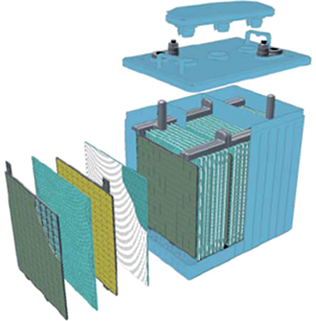

Technical Features
01
Case/Lid
- Less weight, shock-resistant and acid-resistant by PP Resin
- Special-designed structure to prevent short-circuit from activematerial shedding in the bottom
02
Terminal
- Casted with special lead alloy.
- Special plating to minimize heat generation and electric resistance.
- Designed to Vibration resistantance
03
Cap
- Engineering structure to vent gas out.
- Easy to refill and maintenance.
04
Separator
- Porous Rubber material against acid and corrosion
- Excellent physical characteristics and lower electric resistance
- Using micro-fiber Glass-mat against active-material shedding
05
Plates
- Negative - 99.9% pure lead with hard paste feature, specific additives for deep cycle purpose.
- Positive Corrosion-resistant grid with hard paste feature, specific additives for deep cycle purpose.
TERMINAL CONFIGURATIONS
-
Embedded Terminal(ET)
-
Dual fit Terminal(DT)
-
L Terminal(LT)
-
Automotive Post(AP)

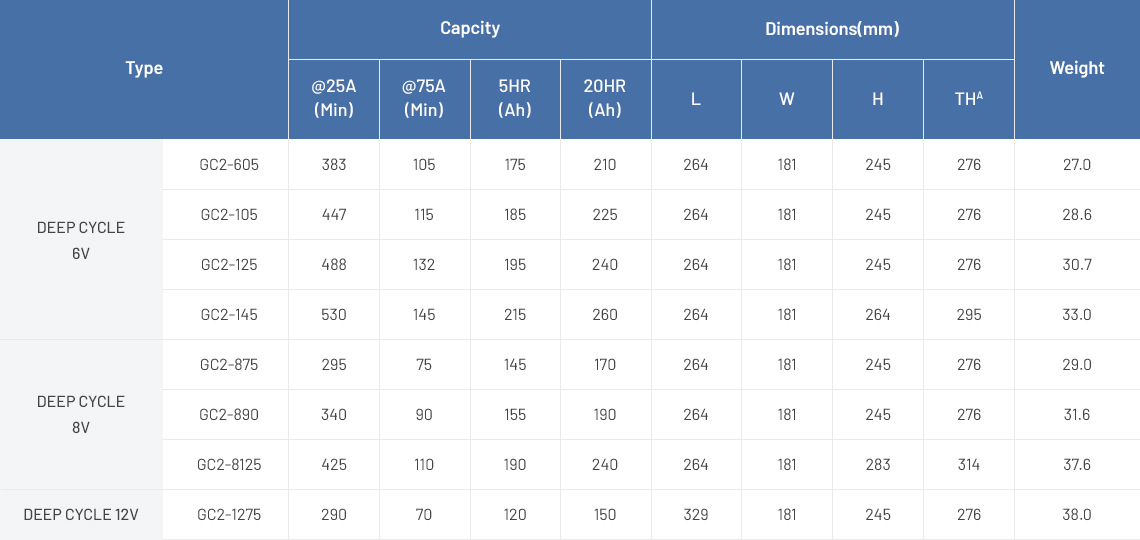

Specification
Longest Golf Cart Battery

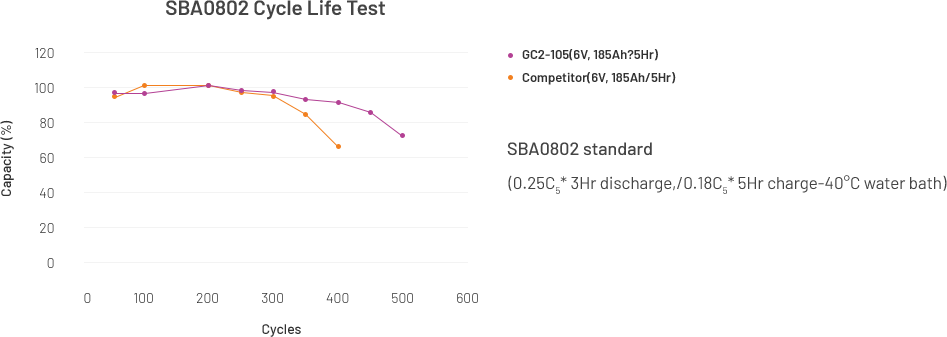

Independent cycle life test
- Improved Paste and 4BS (Tetra Basic lead sulfate) application to longer life cycle and capacity maximization
- Unified and embedded terminal application to prevent terminal damage in event of high rate discharging
