01

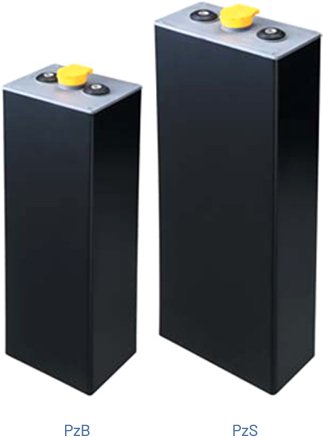

Global’s PzS & PzB series are compliant to DIN EN 60254-2.

02

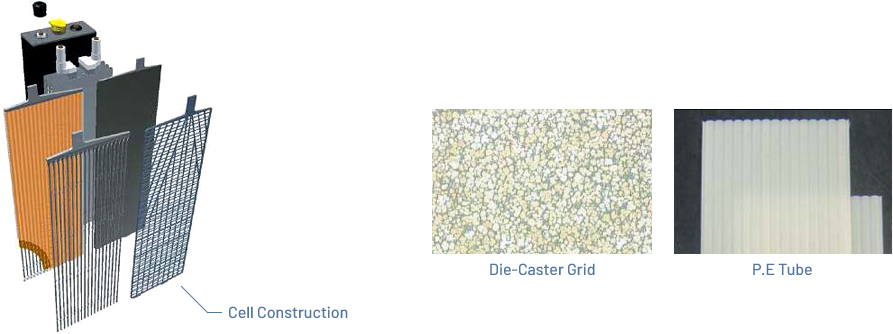

Positive Grid

• The grids produced by high pressure casting system have an excellent advantage in cycle life of traction cell due to its anti-corrosion characteristic.

03

Cap

• Tubular type plates firmly hold active materials in right place and solve the problem of shedding once and for all, and ensure you of high capacity, strong power and minimum defect.

04

Separator

• Microporous polyethylene separators assure ionic circulation and low internal resistance.

05

Plates

• Rubber bushing around terminal protects cover breakage and keeps plates safe from the external shocks and vibration.

06

Heat-Sealed Case and Cover

• The cases and covers are made of polypropylene, which are high impactresistant and heat-sealed for perfect leak-proof assembly.

07

Push in Flip Plug

• Flip plug with electrolyte indication.

08

Cell connection for bolt-on type

• Bolt-on type terminals allow cells to be replaced or moved without excessive work.

09

P.E Tube

• P.E Tube is more environmental friendly compared to Glass Tube, contributed by no use of phenol resin.

10

Wet-Filler

• By equalizing the weight of positive plate, wet-filling has an advantage in reducing capacity variation among each cells.
